Semi-automatic crimped wire weaving machine

Semi-automatic crimped wire weaving machine Semi-automatic crimped wire weaving machine

Product name:Semi-automatic crimped wire weaving machine

Item:GMWMA-81

Details:

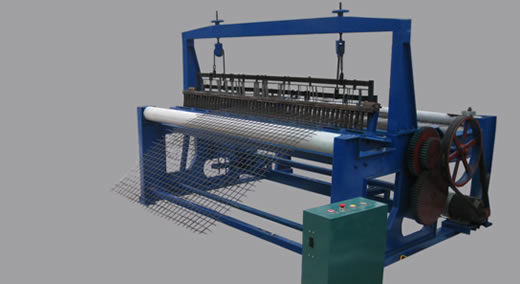

 Semi-automatic crimped wire weaving machine

This machine is used for large diameter wire diameter cotton gin rolled into the required shape, all kinds of mechanical weaving square hole sieve special series of knitting machine, the product structure is compact, easy to operate, can be woven wire diameter 2mm -8mm, mesh 4mm-120mm, width of 1-2.2meters, knitting, machine products are widely used in mining for classification screen use (commonly known as mine screen mesh), mesh weaving machine is also known as mine.

Main parameter of Semi-automatic crimped wire weaving machine:
Weaving width:0.9-2.5m
Wire diameter:1.6-8.0mm
Mesh:2*2-80*80mm2
Quality certification:ISO:9000:2001

Specification:

Gauge

Total measurement(mm3)

Total weight(kg)

Breadth of the net(m)

MT501

2500×2100×1350

1200

1.0

MT502

2500×2300×1350

1280

1.2

MT503

2500×2400×1350

1350

1.3

MT504

2500×2600×1580

1500

1.5

MT505

2500×2900×1580

1800

1.8

MT506

2500×3400×1650

2000

2.2
