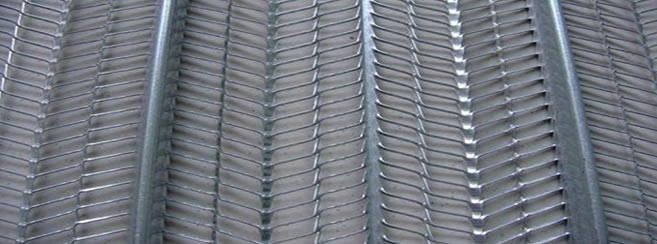

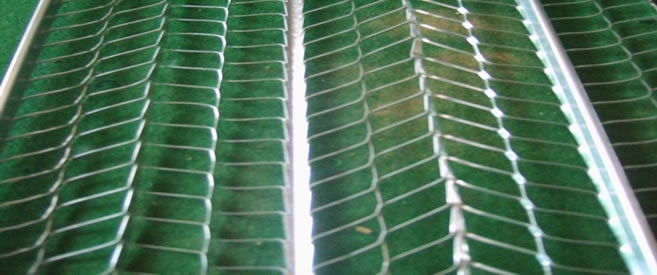

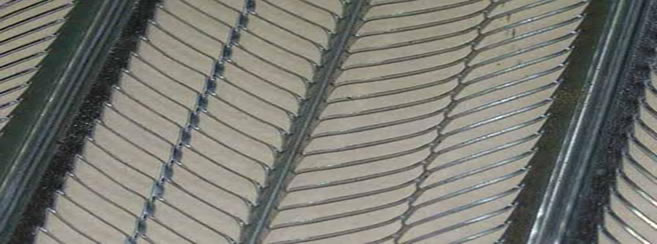

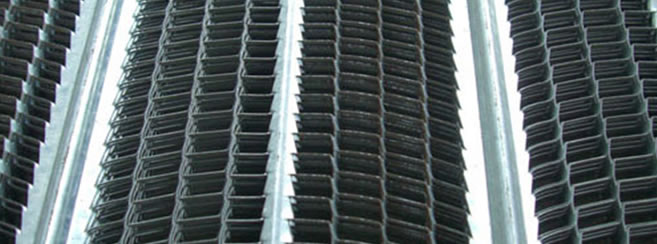

Rib Mesh
Rib Mesh

Product name：Rib Mesh

Item：GMWM-23

Details：

 Rib Mesh

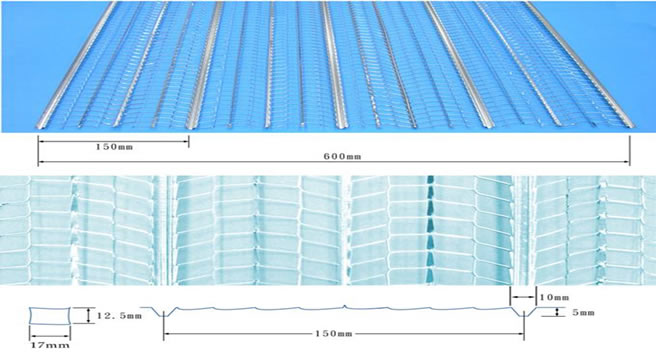

Detailed specifications of the Rib Lath:

Material: galvanized steel sheet

Rib Distance:150mm, Rib Height:5.0mm, Opening size(Sw x Lw):12.5x17mm,Width:600mm



According to the opening size(Sw x Lw), rib lath can be divided into the following four kinds.

1. Sw×Lw:12X8mm

Thickness
(mm)

Sw×Lw (mm)

Rib Height
(mm)

Rib Distance
mm

Weight
kg/m2

Width
(mm)

0.30

12×8

5

100

1.2

610

0.35

12×8

5

100

1.4

610

0.40

12×8

5

100

1.6

610

0.30

12×8

8

100

1.2

610

0.35

12×8

8

100

1.4

610

0.40

12×8

8

100

1.6

610

2. Sw×Lw:3.5x13mm

Thickness
(mm)

Sw×Lw (mm)

Rib Height
(mm)

Rib Distance
mm

Weight
kg/m2

Width
(mm)

0.30

3.5×13

4

60

1.27

610

0.35

3.5×13

4

60

1.49

610

0.40

3.5×13

4

60

1.70

610

0.30

3.5×13

4

75

1.27

750

0.35

3.5×13

4

75

1.49

750

0.40

3.5×13

4

75

1.70

750


3. Sw×Lw:20x9mm

Thickness
(mm)

Sw×Lw (mm)

Rib Height
(mm)

Rib Distance
mm

Weight
kg/m2

Width
(mm)

0.35

20×9

8

75

1.00

610

0.40

20×9

8

75

1.13

610

0.45

20×9

8

75

1.27

610


4. Sw×Lw:16x11mm

Thickness
(mm)

Sw×Lw (mm)

Rib Height
(mm)

Rib Distance
mm

Weight
kg/m2

Width
(mm)

0.30

16x11

8

150

0.88

610

0.35

16x11

8

150

1.18

610

0.40

16x11

8

150

1.46

610
