Welded Wire Mesh machine(in roll)

Welded Wire Mesh machine(in roll) Welded Wire Mesh machine(in roll) Welded Wire Mesh machine(in roll) Welded Wire Mesh machine(in roll)

Product name:Welded Wire Mesh machine(in roll)

Item:GMWMA-111

Details:

 Welded Wire Mesh machinein roll

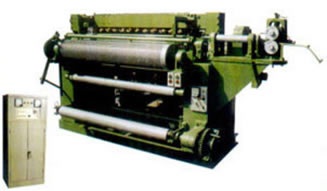

IVIT-01 Type Electric Welding Net Machine

Main parameter of IVIT-01 Type Electric Welding Net Machine:

Size of mesh (mm)

6.35-12.7 (1/4"-1/2")

Width (mm)

914.4-1219.2(12"-48")

Diameter of wire (mm)

0.45-1.07 (BWG25-BWG19)

Biggest rolled net size (m)

120m (400')

Welding speed (mesh/minute)

75 (radia)

Power

380/220V
 50-60HZ
 50KWA x 4

Outside size measurement (mm)

2350 x 1820 x 1700

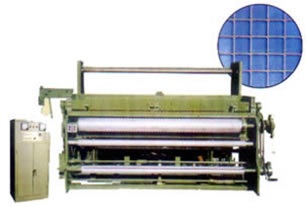

IVIT-02 Type Electric Welding Net Machine30

Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity.Used for welding net of big width. Wire diameter from 0.7mm to 1.07mm; mesh 1/4" to 1/2".

Main parameter of IVIT-02 Type Electric Welding Net Machine30

Size of mesh (mm)

6.35-12.7 (1/4"-1/2")

Width (mm)

1219.2-1828.8(48"-60")

Diameter of wire (mm)

0.74-1.07 (BWG22-BWG19)

Biggest rolled net size (m)

120m (400')

Welding speed (mesh/minute)

48 (radia)

Power

380/220V
 50-60HZ
 50KWA x 6

Outside size measurement (mm)

3050 x 1900 x 1750

IVIT-03 Type Electric Welding Net Machine

Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh 1/2" to 4".



Main parameter of IVIT-03 Type Electric Welding Net Machine:

Size of mesh (mm)

12.7-101.6 (1/2"-4")

Width (mm)

914.4-1219.2(12"-48")

Diameter of wire (mm)

0.63-2(BWG25-BWG19)

Biggest rolled net size (m)

120m (400')

Welding speed (mesh/minute)

65 (radia)

Power

380/220V
 50-60HZ
 50KWA x 4

Outside size measurement (mm)

2600 x 1700 x 1350

IVIT-04 Type Electric Welding Net Machine

Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh of big width and wire diameter.

Main parameter of IVIT-04 Type Electric Welding Net Machine

Size of mesh (mm)

25.4-152.4 (1"-6")

Width (mm)

1219.2 1524 1828.8(48" 60" 72")

Diameter of wire (mm)

1.07-2 (BWG19-BWG14)

Biggest rolled net size (m)

91.4m (300')

Welding speed (mesh/minute)

45 (radia)

Power

380/220V
50-60HZ
50KWA x 6

Outside size measurement (mm)

3350 x 1800 x 1400
