ZZHG-3B Pre-cutting, marking, pleating line

Product name：ZZHG-3B Pre-cutting, marking, pleating line

Item：GMFM-07

Details：

Knife Pleating Production Line

1. Holder 2. Pre-cutter 3. Marking machine 4. Folding Machine

We produce multi-layered media pleating machines. This type of machine does the pleating automatically. Multi-layered Media Pleating Machine is well designed for filtration media , i.e, impregnated filter paper, glass fiber (HEPA Filters) synthetic media, various types of stainless steel, wire mesh as also combination of fabric and wire mesh duly stitched together. It can also pleat paper, card board, copper, aluminium and other metallic foils as may be required. This Pleating Machine is capable of pleating multi-layered media, i.e, fabric and wire mesh, multiple layers of filter paper etc.

ZzHG-3B1100 Pleating Machine

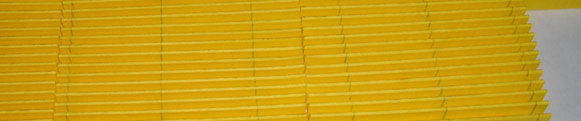

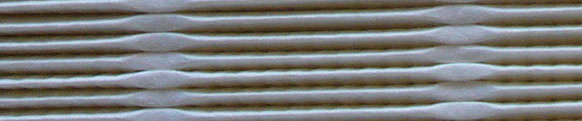

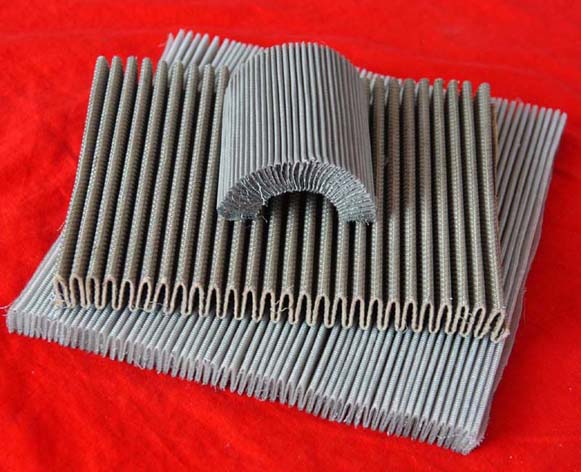

Pleated media samples

SLITTING MACHINE 1100 Type

1. Paper feeding speed: 0.5 - 12m/min 2. Width available: 35 - 1100mm

3. Power: 0.75KW 380V 4. Machine weight: 400KG

5. Machine dimension: 1250mm x 680mm x 1120mm

MARKING MACHINE 1100 Type

1. Marking height: 8 - 55mm 2. Width maximum: 1050mm

3. Power: 1.5KW 380V 4. Machine weight: 450KG

5. Machine dimension: 1500mm x 850mm x 1200mm

PLEATING MACHINE 1100 Type

1. Pleating height: 5 - 55mm or 15 - 120mm 2. Layers pleated: 1 - 5

3. Pleating speed: 20 - 150 pleats/min 4. Max. pleating width : 1100mm

5. Thickness of material: 0.5 - 3mm 6. Speed adjustable motor: 1.5KW
